1. Product Science and Structural Properties
1.1 Crystal Framework and Chemical Stability

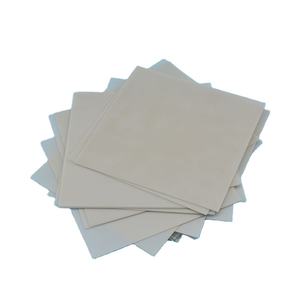

(Aluminum Nitride Ceramic Substrates)
Aluminum nitride (AlN) is a large bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, composed of alternating layers of aluminum and nitrogen atoms bonded through solid covalent interactions.
This durable atomic arrangement endows AlN with phenomenal thermal security, keeping structural stability as much as 2200 ° C in inert atmospheres and withstanding decay under extreme thermal cycling.
Unlike alumina (Al two O ₃), AlN is chemically inert to molten metals and numerous reactive gases, making it suitable for severe atmospheres such as semiconductor processing chambers and high-temperature heaters.
Its high resistance to oxidation– forming just a slim protective Al ₂ O two layer at surface area upon direct exposure to air– makes sure long-lasting reliability without considerable deterioration of bulk properties.
Moreover, AlN displays superb electric insulation with a resistivity surpassing 10 ¹⁴ Ω · cm and a dielectric strength over 30 kV/mm, critical for high-voltage applications.
1.2 Thermal Conductivity and Digital Characteristics
One of the most specifying feature of aluminum nitride is its impressive thermal conductivity, generally ranging from 140 to 180 W/(m · K )for commercial-grade substrates– over 5 times higher than that of alumina (≈ 30 W/(m · K)).
This performance originates from the reduced atomic mass of nitrogen and light weight aluminum, incorporated with strong bonding and very little factor defects, which permit reliable phonon transport via the latticework.
However, oxygen impurities are especially detrimental; even trace amounts (over 100 ppm) alternative to nitrogen websites, producing aluminum vacancies and scattering phonons, consequently considerably minimizing thermal conductivity.
High-purity AlN powders manufactured by means of carbothermal decrease or straight nitridation are necessary to attain optimal heat dissipation.
Regardless of being an electrical insulator, AlN’s piezoelectric and pyroelectric buildings make it beneficial in sensing units and acoustic wave devices, while its wide bandgap (~ 6.2 eV) supports procedure in high-power and high-frequency electronic systems.
2. Construction Procedures and Production Obstacles
( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Strategies
Making high-performance AlN substratums begins with the synthesis of ultra-fine, high-purity powder, frequently accomplished via responses such as Al Two O ₃ + 3C + N ₂ → 2AlN + 3CO (carbothermal reduction) or straight nitridation of light weight aluminum steel: 2Al + N ₂ → 2AlN.
The resulting powder should be very carefully grated and doped with sintering aids like Y ₂ O ₃, CaO, or uncommon planet oxides to advertise densification at temperatures between 1700 ° C and 1900 ° C under nitrogen atmosphere.
These additives form short-term fluid phases that improve grain boundary diffusion, making it possible for full densification (> 99% academic thickness) while lessening oxygen contamination.
Post-sintering annealing in carbon-rich environments can further decrease oxygen content by removing intergranular oxides, thereby restoring peak thermal conductivity.
Accomplishing consistent microstructure with controlled grain dimension is vital to stabilize mechanical strength, thermal efficiency, and manufacturability.
2.2 Substrate Forming and Metallization
Once sintered, AlN porcelains are precision-ground and lapped to meet tight dimensional resistances required for electronic product packaging, frequently down to micrometer-level monotony.
Through-hole boring, laser cutting, and surface area patterning enable combination into multilayer bundles and hybrid circuits.
An important action in substratum construction is metallization– the application of conductive layers (commonly tungsten, molybdenum, or copper) using procedures such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).
For DBC, copper foils are bound to AlN surface areas at elevated temperature levels in a regulated atmosphere, developing a strong user interface suitable for high-current applications.
Alternate techniques like active metal brazing (AMB) use titanium-containing solders to improve attachment and thermal exhaustion resistance, specifically under duplicated power biking.
Correct interfacial design makes sure low thermal resistance and high mechanical dependability in operating devices.
3. Performance Advantages in Electronic Equipment
3.1 Thermal Administration in Power Electronic Devices
AlN substratums master taking care of warm produced by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers made use of in electrical automobiles, renewable energy inverters, and telecommunications infrastructure.
Reliable heat extraction prevents localized hotspots, lowers thermal tension, and prolongs tool life time by mitigating electromigration and delamination threats.
Compared to typical Al ₂ O ₃ substratums, AlN makes it possible for smaller sized package sizes and higher power thickness because of its exceptional thermal conductivity, allowing designers to press efficiency limits without endangering dependability.
In LED lighting and laser diodes, where joint temperature level straight affects efficiency and shade security, AlN substratums significantly enhance luminous output and functional life-span.
Its coefficient of thermal expansion (CTE ≈ 4.5 ppm/K) also carefully matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), lessening thermo-mechanical anxiety during thermal cycling.
3.2 Electric and Mechanical Reliability
Beyond thermal efficiency, AlN supplies reduced dielectric loss (tan δ < 0.0005) and steady permittivity (εᵣ ≈ 8.9) throughout a broad regularity array, making it optimal for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature avoids wetness ingress, getting rid of deterioration threats in moist environments– an essential advantage over organic substratums.
Mechanically, AlN has high flexural strength (300– 400 MPa) and solidity (HV ≈ 1200), making sure sturdiness throughout handling, assembly, and area procedure.
These features collectively add to enhanced system reliability, minimized failure prices, and reduced total expense of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Defense Equipments
AlN ceramic substrates are currently basic in sophisticated power components for commercial motor drives, wind and solar inverters, and onboard chargers in electrical and hybrid automobiles.
In aerospace and protection, they support radar systems, digital war units, and satellite communications, where efficiency under extreme problems is non-negotiable.
Clinical imaging equipment, including X-ray generators and MRI systems, additionally benefit from AlN’s radiation resistance and signal integrity.
As electrification fads speed up across transportation and power industries, need for AlN substrates remains to grow, driven by the need for compact, efficient, and reliable power electronics.
4.2 Emerging Combination and Lasting Development
Future innovations focus on integrating AlN into three-dimensional packaging designs, ingrained passive elements, and heterogeneous integration systems integrating Si, SiC, and GaN devices.
Research into nanostructured AlN movies and single-crystal substrates intends to further boost thermal conductivity toward academic restrictions (> 300 W/(m · K)) for next-generation quantum and optoelectronic devices.
Initiatives to reduce manufacturing costs through scalable powder synthesis, additive production of intricate ceramic frameworks, and recycling of scrap AlN are acquiring momentum to enhance sustainability.
Additionally, modeling devices utilizing limited aspect analysis (FEA) and artificial intelligence are being used to maximize substrate style for certain thermal and electric tons.
Finally, light weight aluminum nitride ceramic substrates represent a cornerstone modern technology in modern electronic devices, distinctively linking the void in between electric insulation and phenomenal thermal conduction.
Their duty in allowing high-efficiency, high-reliability power systems highlights their calculated significance in the ongoing advancement of digital and power technologies.
