1. Material Basics and Crystal Chemistry
1.1 Make-up and Polymorphic Framework

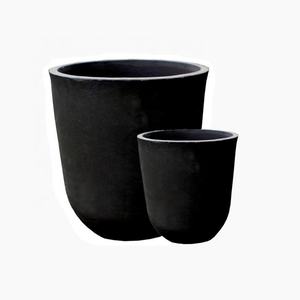

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic compound made up of silicon and carbon atoms in a 1:1 stoichiometric ratio, renowned for its extraordinary hardness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal frameworks differing in stacking sequences– among which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technologically pertinent.
The solid directional covalent bonds (Si– C bond power ~ 318 kJ/mol) lead to a high melting point (~ 2700 ° C), reduced thermal development (~ 4.0 × 10 ⁻⁶/ K), and superb resistance to thermal shock.
Unlike oxide porcelains such as alumina, SiC lacks a native glassy stage, contributing to its security in oxidizing and harsh ambiences as much as 1600 ° C.
Its wide bandgap (2.3– 3.3 eV, depending upon polytype) additionally enhances it with semiconductor buildings, enabling twin usage in architectural and electronic applications.
1.2 Sintering Difficulties and Densification Methods
Pure SiC is incredibly tough to densify as a result of its covalent bonding and low self-diffusion coefficients, requiring using sintering help or advanced processing methods.
Reaction-bonded SiC (RB-SiC) is produced by infiltrating porous carbon preforms with liquified silicon, developing SiC in situ; this technique returns near-net-shape elements with recurring silicon (5– 20%).
Solid-state sintered SiC (SSiC) utilizes boron and carbon additives to advertise densification at ~ 2000– 2200 ° C under inert atmosphere, accomplishing > 99% theoretical thickness and remarkable mechanical buildings.
Liquid-phase sintered SiC (LPS-SiC) utilizes oxide ingredients such as Al ₂ O FOUR– Y TWO O THREE, developing a short-term fluid that boosts diffusion but might decrease high-temperature stamina due to grain-boundary stages.
Hot pressing and stimulate plasma sintering (SPS) use quick, pressure-assisted densification with great microstructures, ideal for high-performance elements requiring minimal grain development.
2. Mechanical and Thermal Performance Characteristics
2.1 Stamina, Hardness, and Use Resistance
Silicon carbide ceramics show Vickers solidity worths of 25– 30 GPa, second only to ruby and cubic boron nitride among engineering products.
Their flexural stamina normally varies from 300 to 600 MPa, with fracture strength (K_IC) of 3– 5 MPa · m 1ST/ TWO– moderate for porcelains but enhanced through microstructural design such as whisker or fiber support.
The combination of high firmness and elastic modulus (~ 410 GPa) makes SiC extremely resistant to abrasive and erosive wear, surpassing tungsten carbide and set steel in slurry and particle-laden atmospheres.

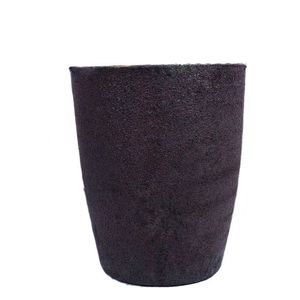

( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC components show service lives a number of times longer than standard choices.
Its low thickness (~ 3.1 g/cm FIVE) additional contributes to use resistance by decreasing inertial forces in high-speed rotating parts.
2.2 Thermal Conductivity and Stability
Among SiC’s most distinguishing attributes is its high thermal conductivity– ranging from 80 to 120 W/(m · K )for polycrystalline forms, and up to 490 W/(m · K) for single-crystal 4H-SiC– going beyond most metals other than copper and aluminum.
This property makes it possible for efficient heat dissipation in high-power electronic substrates, brake discs, and warm exchanger parts.
Combined with low thermal growth, SiC exhibits superior thermal shock resistance, measured by the R-parameter (σ(1– ν)k/ αE), where high values suggest strength to quick temperature level changes.
For instance, SiC crucibles can be warmed from area temperature level to 1400 ° C in minutes without cracking, a feat unattainable for alumina or zirconia in comparable problems.
Moreover, SiC preserves toughness approximately 1400 ° C in inert ambiences, making it suitable for heating system fixtures, kiln furniture, and aerospace elements revealed to extreme thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Actions in Oxidizing and Decreasing Environments
At temperatures below 800 ° C, SiC is very secure in both oxidizing and reducing settings.
Over 800 ° C in air, a safety silica (SiO TWO) layer kinds on the surface via oxidation (SiC + 3/2 O ₂ → SiO ₂ + CO), which passivates the material and slows further destruction.
However, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)FOUR, causing accelerated economic crisis– a vital factor to consider in generator and burning applications.
In decreasing atmospheres or inert gases, SiC stays secure approximately its decay temperature level (~ 2700 ° C), without phase adjustments or stamina loss.
This stability makes it suitable for molten steel handling, such as light weight aluminum or zinc crucibles, where it withstands moistening and chemical assault much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is practically inert to all acids except hydrofluoric acid (HF) and strong oxidizing acid mixtures (e.g., HF– HNO SIX).
It reveals superb resistance to alkalis up to 800 ° C, though long term exposure to thaw NaOH or KOH can trigger surface area etching through formation of soluble silicates.
In molten salt environments– such as those in concentrated solar power (CSP) or nuclear reactors– SiC demonstrates superior corrosion resistance compared to nickel-based superalloys.
This chemical effectiveness underpins its use in chemical procedure tools, including shutoffs, liners, and warm exchanger tubes dealing with aggressive media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Emerging Frontiers
4.1 Established Uses in Power, Protection, and Manufacturing
Silicon carbide ceramics are indispensable to numerous high-value commercial systems.
In the power sector, they function as wear-resistant linings in coal gasifiers, elements in nuclear gas cladding (SiC/SiC composites), and substrates for high-temperature strong oxide fuel cells (SOFCs).
Protection applications include ballistic shield plates, where SiC’s high hardness-to-density ratio provides superior security versus high-velocity projectiles contrasted to alumina or boron carbide at lower price.
In manufacturing, SiC is used for accuracy bearings, semiconductor wafer managing elements, and rough blowing up nozzles as a result of its dimensional security and purity.
Its usage in electric automobile (EV) inverters as a semiconductor substratum is rapidly growing, driven by effectiveness gains from wide-bandgap electronics.
4.2 Next-Generation Advancements and Sustainability
Recurring research focuses on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which exhibit pseudo-ductile actions, boosted toughness, and retained toughness over 1200 ° C– ideal for jet engines and hypersonic lorry leading sides.
Additive manufacturing of SiC through binder jetting or stereolithography is advancing, allowing intricate geometries previously unattainable with conventional developing methods.
From a sustainability perspective, SiC’s longevity decreases replacement regularity and lifecycle exhausts in industrial systems.
Recycling of SiC scrap from wafer cutting or grinding is being developed via thermal and chemical recovery procedures to reclaim high-purity SiC powder.
As industries push towards greater effectiveness, electrification, and extreme-environment operation, silicon carbide-based porcelains will stay at the center of advanced products engineering, bridging the void in between structural resilience and practical adaptability.
