1. Product Basics and Structural Properties
1.1 Crystal Chemistry and Polymorphism

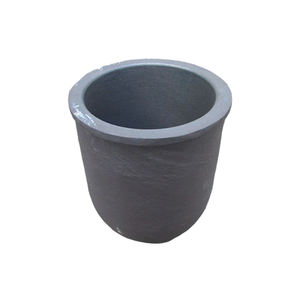

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms organized in a tetrahedral latticework, forming one of the most thermally and chemically robust products understood.
It exists in over 250 polytypic types, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most pertinent for high-temperature applications.
The solid Si– C bonds, with bond power surpassing 300 kJ/mol, confer phenomenal solidity, thermal conductivity, and resistance to thermal shock and chemical assault.
In crucible applications, sintered or reaction-bonded SiC is chosen as a result of its ability to maintain structural stability under severe thermal gradients and destructive molten settings.
Unlike oxide ceramics, SiC does not undergo disruptive stage transitions up to its sublimation point (~ 2700 ° C), making it excellent for sustained procedure above 1600 ° C.
1.2 Thermal and Mechanical Performance
A defining quality of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which advertises consistent heat distribution and minimizes thermal anxiety throughout fast heating or cooling.
This building contrasts dramatically with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are prone to splitting under thermal shock.
SiC likewise exhibits excellent mechanical toughness at raised temperatures, retaining over 80% of its room-temperature flexural strength (up to 400 MPa) even at 1400 ° C.
Its reduced coefficient of thermal growth (~ 4.0 × 10 ⁻⁶/ K) further enhances resistance to thermal shock, a crucial consider repeated cycling in between ambient and functional temperature levels.
Furthermore, SiC shows exceptional wear and abrasion resistance, making certain lengthy life span in atmospheres involving mechanical handling or turbulent melt flow.
2. Production Approaches and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Strategies and Densification Techniques
Business SiC crucibles are mainly made through pressureless sintering, reaction bonding, or hot pressing, each offering distinctive benefits in cost, purity, and performance.
Pressureless sintering includes compacting fine SiC powder with sintering aids such as boron and carbon, followed by high-temperature therapy (2000– 2200 ° C )in inert ambience to accomplish near-theoretical thickness.
This technique returns high-purity, high-strength crucibles suitable for semiconductor and advanced alloy handling.
Reaction-bonded SiC (RBSC) is generated by infiltrating a permeable carbon preform with molten silicon, which responds to develop β-SiC in situ, resulting in a composite of SiC and residual silicon.
While a little reduced in thermal conductivity due to metal silicon additions, RBSC offers excellent dimensional stability and lower production cost, making it popular for massive commercial usage.
Hot-pressed SiC, though a lot more pricey, supplies the highest density and purity, booked for ultra-demanding applications such as single-crystal development.
2.2 Surface High Quality and Geometric Accuracy
Post-sintering machining, including grinding and lapping, makes sure specific dimensional tolerances and smooth interior surface areas that reduce nucleation sites and minimize contamination threat.
Surface area roughness is meticulously managed to avoid thaw adhesion and help with very easy launch of strengthened materials.
Crucible geometry– such as wall surface thickness, taper angle, and lower curvature– is optimized to balance thermal mass, structural strength, and compatibility with heating system burner.
Personalized designs suit specific melt quantities, home heating profiles, and product reactivity, ensuring ideal performance across diverse industrial processes.
Advanced quality assurance, including X-ray diffraction, scanning electron microscopy, and ultrasonic screening, confirms microstructural homogeneity and lack of defects like pores or cracks.
3. Chemical Resistance and Interaction with Melts
3.1 Inertness in Hostile Atmospheres
SiC crucibles display outstanding resistance to chemical strike by molten metals, slags, and non-oxidizing salts, outperforming traditional graphite and oxide porcelains.
They are steady touching molten aluminum, copper, silver, and their alloys, withstanding wetting and dissolution because of reduced interfacial power and development of safety surface oxides.
In silicon and germanium processing for photovoltaics and semiconductors, SiC crucibles prevent metallic contamination that could deteriorate electronic properties.
However, under very oxidizing conditions or in the existence of alkaline fluxes, SiC can oxidize to create silica (SiO ₂), which may respond better to create low-melting-point silicates.
As a result, SiC is best suited for neutral or lowering atmospheres, where its stability is made best use of.
3.2 Limitations and Compatibility Considerations
Despite its toughness, SiC is not widely inert; it reacts with specific liquified materials, particularly iron-group steels (Fe, Ni, Co) at heats with carburization and dissolution procedures.
In molten steel processing, SiC crucibles degrade rapidly and are for that reason prevented.
Likewise, antacids and alkaline earth metals (e.g., Li, Na, Ca) can lower SiC, launching carbon and developing silicides, limiting their usage in battery product synthesis or responsive steel casting.
For molten glass and ceramics, SiC is usually compatible but might present trace silicon right into very sensitive optical or digital glasses.
Comprehending these material-specific interactions is crucial for choosing the proper crucible type and making sure procedure purity and crucible durability.
4. Industrial Applications and Technological Evolution
4.1 Metallurgy, Semiconductor, and Renewable Resource Sectors
SiC crucibles are crucial in the production of multicrystalline and monocrystalline silicon ingots for solar cells, where they withstand prolonged exposure to thaw silicon at ~ 1420 ° C.
Their thermal stability makes sure uniform condensation and decreases dislocation thickness, straight influencing photovoltaic effectiveness.
In foundries, SiC crucibles are made use of for melting non-ferrous steels such as aluminum and brass, providing longer life span and minimized dross formation contrasted to clay-graphite options.
They are additionally employed in high-temperature research laboratories for thermogravimetric analysis, differential scanning calorimetry, and synthesis of advanced porcelains and intermetallic compounds.
4.2 Future Patterns and Advanced Material Combination
Emerging applications include using SiC crucibles in next-generation nuclear materials screening and molten salt reactors, where their resistance to radiation and molten fluorides is being reviewed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O SIX) are being put on SiC surfaces to further boost chemical inertness and avoid silicon diffusion in ultra-high-purity procedures.
Additive production of SiC elements making use of binder jetting or stereolithography is under development, promising complex geometries and rapid prototyping for specialized crucible layouts.
As need grows for energy-efficient, sturdy, and contamination-free high-temperature handling, silicon carbide crucibles will stay a keystone innovation in sophisticated materials producing.
Finally, silicon carbide crucibles represent an important allowing component in high-temperature industrial and scientific processes.
Their unequaled mix of thermal security, mechanical toughness, and chemical resistance makes them the product of option for applications where performance and reliability are paramount.
