1. Intro to Oil Submersed Transformers
In the intricate web of our modern electrical grid, transformers play an important function, quietly tipping voltage up and down to make certain power can be transmitted efficiently over fars away and distributed securely to our homes and sectors. Amongst the numerous kinds offered, the oil immersed transformer stands as a testimony to tested integrity and longevity. For years, these workhorses have formed the backbone of power systems worldwide.
An oil submersed transformer is a type of electrical transformer that makes use of a specialized shielding oil as both a coolant and a protecting tool. This design is mostly made use of for tool to high-power applications, making it a cornerstone of electrical facilities. This guide delves deep into the world of oil submersed power transformers and oil immersed distribution transformers, discovering their innovation, applications, and their evolving duty in an age of digitalization and renewable resource.
1.1 What is an Oil Submersed Transformer?
At its core, an oil immersed transformer includes a magnetic core and copper or aluminum windings housed inside a sealed tank loaded with protecting oil. The key feature of the oil is twofold:
1. Insulation: The oil possesses high dielectric toughness, successfully shielding the high-voltage windings from the transformer’s core and based container. This protects against short circuits and electric malfunctions.
2. Air conditioning: As the transformer runs, the windings create considerable warm due to I ² R losses. The flowing oil absorbs this warmth, convects it to the transformer’s container walls, and dissipates it into the bordering air. Larger devices commonly include radiators or fins to increase the area for a lot more efficient cooling.
This dual-purpose use oil makes the oil submersed transformer exceptionally reliable and robust, capable of dealing with high tons and holding up against short-term overloads much better than many dry-type choices.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these devices are oil immersed transformers, they offer distinctive features within the power system network. Recognizing the difference is essential.
An oil immersed power transformer is a heavyweight, generally utilized in transmission networks at generating terminals and significant substations. Their main role is to “step-up” the voltage generated at the nuclear power plant to exceptionally high levels (e.g., 138 kV, 230 kV, 500 kV and above) for reliable long-distance transmission, and to “step-down” the voltage at getting substations for additional circulation. They are characterized by their extremely high power scores (typically exceeding 100 MVA), intricate building, and on-load tap changers for voltage law.
An oil immersed distribution transformer, on the other hand, carries out the final step in the power delivery chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it down to the reduced voltages (e.g., 400/230 V) used by commercial and property customers. You commonly discover them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have lower power scores (usually as much as 2,500 kVA), and are designed for maximum performance at reduced, a lot more continuous loads.

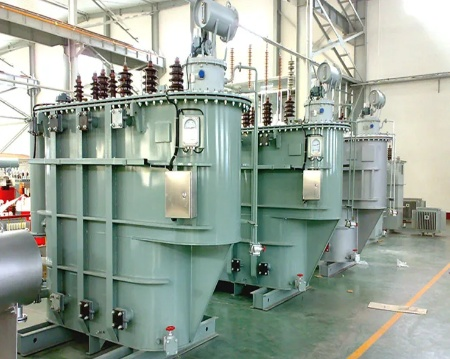

(Oil immersed power transformer)
2. Trick Advantages of Oil Immersed Transformers
The long-lasting appeal of the oil immersed transformer is not accidental. It provides a collection of compelling advantages that make it the favored choice for numerous requiring applications.
2.1 Superior Air Conditioning and Overload Capacity
The premium thermal ability of oil contrasted to air permits an oil immersed power transformer to manage and dissipate warm a lot more successfully. This converts to a higher overload ability. During durations of optimal electrical power demand, an oil submersed transformer can manage short-lived overloads without suffering damages, an essential feature for keeping grid security. The oil’s circulation makes certain also warmth distribution, avoiding local locations that can degrade insulation in time.
2.2 Boosted Insulation and Long Service Life
The combination of high-grade mineral oil and diligently impregnated paper insulation produces a dielectric system of extraordinary toughness. This robust insulation system secures the transformer from voltage surges and transients, contributing to an operational life expectancy that can include 30-40 years or more with correct upkeep. The secured storage tank additionally safeguards the inner elements from wetness, dust, and other atmospheric impurities.
2.3 High Effectiveness and Cost-Effectiveness
For high-power applications, the oil submersed transformer is typically one of the most affordable choice. The materials used– mineral oil, steel container, and copper/aluminum windings– offer a beneficial balance of efficiency and price. The high effectiveness of these transformers, particularly at their ranked load, results in reduced power losses over their lifetime, resulting in considerable cost savings for energy business and big industrial customers.
3. Warm Subjects and Future Trends
The globe of oil submersed transformers is not static. It is continually progressing to meet new challenges and integrate with modern-day technologies.
3.1 Eco-friendly and Fireproof Oils
Environmental and safety problems are driving a considerable change far from conventional mineral oil. The market is quickly taking on oil submersed transformers loaded with biodegradable esters (synthetic or natural). These oils offer a greater fire factor (making them K-class fire-resistant), are less harmful, and are easily eco-friendly, considerably decreasing the ecological impact in instance of a leak. This pattern is making oil submersed circulation transformers safer for installment in city locations and ecologically delicate locations.
3.2 Combination with Smart Grids and IoT
The contemporary oil involved power transformer is becoming an intelligent node in the clever grid. Sensors are being incorporated to keep track of vital criteria in real-time, consisting of:
Dissolved Gas Analysis (DGA): Spotting fault gases generated within the oil to predict incipient faults.
Temperature Monitoring: Tracking top-oil and hotspot temperatures.
Tons and Power Quality Surveillance.
This information, transferred via IoT (Net of Points) platforms, allows anticipating maintenance, protects against unintended interruptions, and optimizes transformer utilization and life expectancy.
3.3 Sustaining the Renewable Resource Transition
The worldwide push for renewables is developing brand-new demand for oil immersed transformers. Large-scale solar farms and wind power installations need durable oil submersed power transformers to step up the created voltage to transmission levels. In addition, the recurring nature of renewables places better tension on grid parts, and the tested integrity and overload capability of oil immersed transformers make them ideal for this crucial role.
4. Option and Upkeep Best Practices
Picking the ideal transformer and maintaining it properly is key to a reliable power system.
4.1 Just how to Pick the Right Oil Immersed Transformer
Picking between an oil submersed power transformer and an oil immersed circulation transformer relies on the application. Secret considerations consist of:
1. Voltage Level and kVA Ranking: Match the transformer’s requirements to your system’s demands.
2. Application: Transmission substation, plant, or industrial circulation.
3. Area: Indoor vs. outside, ecological conditions, and fire safety guidelines (which may affect the selection of insulating oil).
4. Performance Requirements: Adhere to local performance criteria like DOE (United States) or EU CoC (Europe).
5. Budget: Think about both the initial resources price and the overall cost of possession, including losses.

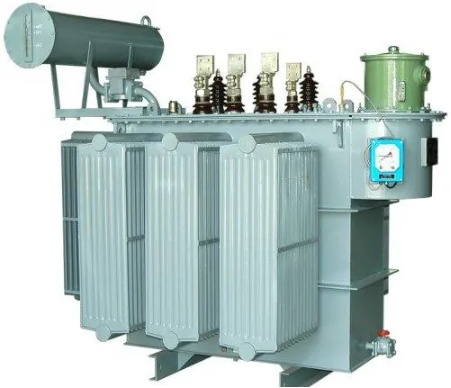

(Oil immersed distribution transformer)
4.2 Important Upkeep for Longevity
Aggressive maintenance is crucial for any oil immersed transformer. A detailed program ought to include:
1. Normal Oil Tasting and Screening: Routine DGA and testing of dielectric stamina and moisture web content are the most reliable means to evaluate the health and wellness of the transformer.
2. Bushing and Insulation Evaluation: Visual look for splits, contamination, or leaks.
3. Faucet Changer Upkeep: Regular examination and maintenance of on-load or off-load tap changers.
4. Maintain it Tidy and Dry: Making certain the container outside, radiators, and rests are clean and useful.
The oil immersed transformer, in its roles as both a high-capacity oil immersed power transformer and an ubiquitous oil submersed distribution transformer, remains an irreplaceable part of our global energy infrastructure. Its tried and tested design, combined with recurring advancements in insulating liquids and digital surveillance, ensures it will continue to be a dependable, reliable, and intelligent remedy for powering our globe for decades to come. As we construct the grids of the future, integrating more renewables and digital knowledge, the durable and versatile oil immersed transformer will certainly be at the heart of it.
