1. Crystal Framework and Bonding Nature of Ti Two AlC
1.1 Limit Stage Household and Atomic Piling Series

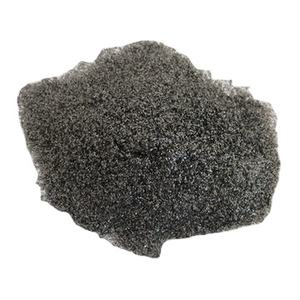

(Ti2AlC MAX Phase Powder)
Ti β AlC belongs to limit phase family, a class of nanolaminated ternary carbides and nitrides with the basic formula Mβ ββ AXβ, where M is an early shift metal, A is an A-group element, and X is carbon or nitrogen.
In Ti two AlC, titanium (Ti) functions as the M element, aluminum (Al) as the A component, and carbon (C) as the X component, forming a 211 structure (n=1) with rotating layers of Ti β C octahedra and Al atoms piled along the c-axis in a hexagonal lattice.
This distinct layered style combines strong covalent bonds within the Ti– C layers with weaker metallic bonds between the Ti and Al airplanes, leading to a crossbreed product that shows both ceramic and metallic characteristics.
The durable Ti– C covalent network gives high stiffness, thermal security, and oxidation resistance, while the metal Ti– Al bonding makes it possible for electric conductivity, thermal shock resistance, and damage resistance unusual in traditional porcelains.
This duality emerges from the anisotropic nature of chemical bonding, which permits energy dissipation systems such as kink-band development, delamination, and basic airplane fracturing under anxiety, rather than catastrophic breakable crack.
1.2 Digital Framework and Anisotropic Characteristics
The digital arrangement of Ti β AlC features overlapping d-orbitals from titanium and p-orbitals from carbon and light weight aluminum, bring about a high density of states at the Fermi degree and intrinsic electric and thermal conductivity along the basic planes.
This metal conductivity– unusual in ceramic materials– enables applications in high-temperature electrodes, current collection agencies, and electro-magnetic shielding.
Residential or commercial property anisotropy is obvious: thermal expansion, elastic modulus, and electrical resistivity vary significantly in between the a-axis (in-plane) and c-axis (out-of-plane) instructions as a result of the split bonding.
As an example, thermal expansion along the c-axis is lower than along the a-axis, adding to enhanced resistance to thermal shock.
Additionally, the product presents a low Vickers firmness (~ 4– 6 Grade point average) compared to conventional porcelains like alumina or silicon carbide, yet maintains a high Youthful’s modulus (~ 320 GPa), mirroring its one-of-a-kind combination of gentleness and rigidity.
This equilibrium makes Ti two AlC powder especially suitable for machinable ceramics and self-lubricating compounds.
( Ti2AlC MAX Phase Powder)
2. Synthesis and Handling of Ti Two AlC Powder
2.1 Solid-State and Advanced Powder Production Approaches
Ti two AlC powder is primarily synthesized through solid-state responses between elemental or compound precursors, such as titanium, aluminum, and carbon, under high-temperature problems (1200– 1500 Β° C )in inert or vacuum atmospheres.
The response: 2Ti + Al + C β Ti β AlC, need to be very carefully controlled to avoid the development of competing phases like TiC, Ti Two Al, or TiAl, which degrade practical efficiency.
Mechanical alloying followed by heat treatment is an additional extensively utilized method, where elemental powders are ball-milled to achieve atomic-level blending before annealing to develop the MAX stage.
This method enables great bit dimension control and homogeneity, crucial for advanced combination strategies.
A lot more innovative techniques, such as stimulate plasma sintering (SPS), chemical vapor deposition (CVD), and molten salt synthesis, deal courses to phase-pure, nanostructured, or oriented Ti β AlC powders with tailored morphologies.
Molten salt synthesis, particularly, permits reduced response temperature levels and far better bit dispersion by serving as a flux medium that enhances diffusion kinetics.
2.2 Powder Morphology, Pureness, and Handling Considerations
The morphology of Ti β AlC powder– varying from irregular angular particles to platelet-like or round granules– depends on the synthesis course and post-processing steps such as milling or classification.
Platelet-shaped bits show the inherent split crystal structure and are beneficial for strengthening compounds or producing distinctive bulk materials.
High stage purity is important; also percentages of TiC or Al β O four pollutants can considerably modify mechanical, electric, and oxidation behaviors.
X-ray diffraction (XRD) and electron microscopy (SEM/TEM) are regularly used to assess phase composition and microstructure.
As a result of aluminum’s reactivity with oxygen, Ti β AlC powder is vulnerable to surface oxidation, creating a thin Al two O four layer that can passivate the material however may hinder sintering or interfacial bonding in compounds.
Consequently, storage space under inert environment and processing in controlled environments are important to preserve powder stability.
3. Useful Behavior and Efficiency Mechanisms
3.1 Mechanical Resilience and Damages Resistance
One of one of the most exceptional features of Ti two AlC is its capacity to hold up against mechanical damages without fracturing catastrophically, a residential or commercial property referred to as “damage resistance” or “machinability” in ceramics.
Under tons, the material fits anxiety via mechanisms such as microcracking, basic airplane delamination, and grain boundary gliding, which dissipate power and prevent fracture proliferation.
This habits contrasts dramatically with traditional porcelains, which generally fall short suddenly upon reaching their elastic restriction.
Ti two AlC parts can be machined utilizing standard tools without pre-sintering, a rare capability amongst high-temperature porcelains, decreasing manufacturing expenses and enabling complicated geometries.
Additionally, it exhibits exceptional thermal shock resistance due to reduced thermal expansion and high thermal conductivity, making it appropriate for components subjected to quick temperature changes.
3.2 Oxidation Resistance and High-Temperature Stability
At raised temperature levels (as much as 1400 Β° C in air), Ti β AlC forms a protective alumina (Al β O FIVE) range on its surface area, which acts as a diffusion obstacle versus oxygen ingress, substantially slowing down further oxidation.
This self-passivating actions is analogous to that seen in alumina-forming alloys and is critical for lasting security in aerospace and power applications.
Nonetheless, above 1400 Β° C, the formation of non-protective TiO β and interior oxidation of aluminum can bring about increased deterioration, restricting ultra-high-temperature use.
In decreasing or inert atmospheres, Ti two AlC keeps architectural honesty up to 2000 Β° C, showing extraordinary refractory features.
Its resistance to neutron irradiation and reduced atomic number additionally make it a prospect product for nuclear combination reactor components.
4. Applications and Future Technical Combination
4.1 High-Temperature and Architectural Elements
Ti two AlC powder is used to fabricate bulk ceramics and finishings for severe settings, consisting of wind turbine blades, burner, and heater components where oxidation resistance and thermal shock tolerance are extremely important.
Hot-pressed or spark plasma sintered Ti β AlC displays high flexural strength and creep resistance, outmatching many monolithic ceramics in cyclic thermal loading scenarios.
As a finishing product, it secures metallic substratums from oxidation and use in aerospace and power generation systems.
Its machinability enables in-service repair work and precision ending up, a significant advantage over fragile porcelains that need diamond grinding.
4.2 Functional and Multifunctional Product Equipments
Beyond architectural roles, Ti β AlC is being discovered in functional applications leveraging its electric conductivity and layered framework.
It acts as a precursor for manufacturing two-dimensional MXenes (e.g., Ti three C β Tβ) using selective etching of the Al layer, allowing applications in power storage, sensors, and electro-magnetic interference securing.
In composite materials, Ti β AlC powder boosts the sturdiness and thermal conductivity of ceramic matrix compounds (CMCs) and metal matrix compounds (MMCs).
Its lubricious nature under heat– due to very easy basic aircraft shear– makes it appropriate for self-lubricating bearings and sliding elements in aerospace systems.
Emerging study concentrates on 3D printing of Ti β AlC-based inks for net-shape manufacturing of intricate ceramic parts, pressing the limits of additive manufacturing in refractory products.
In recap, Ti two AlC MAX phase powder stands for a paradigm change in ceramic products science, bridging the gap in between steels and ceramics via its layered atomic architecture and crossbreed bonding.
Its one-of-a-kind combination of machinability, thermal stability, oxidation resistance, and electrical conductivity makes it possible for next-generation elements for aerospace, energy, and advanced production.
As synthesis and processing modern technologies mature, Ti β AlC will certainly play an increasingly essential function in design materials created for extreme and multifunctional settings.
