Every component in a railway system have to function well. This keeps the system secure and efficient. Train spreading components are extremely crucial. They give assistance, connect points, and conduct signals. Their high quality affects exactly how stable the railway network is. When you get these parts for South Africa, South America, or Russia, you need to locate great manufacturers. To be effective, you need to recognize the neighborhood technical guidelines. Right here are 5 vital high quality requirements you should constantly follow.
1. Material Composition & Mechanical Qualities: The Foundation of High quality
The performance of actors iron relies on its particular chemical structure and casting process, and need to fulfill the global or regional criteria of the target audience. A dependable train spreading components maker will provide full product traceability.
1.1 Make-up Standards: Should comply with criteria such as International Specifications (ISO), European Standards (EN), Russian GOST requirements, or those typically used in South America like IRAM (Argentina) and ABNT NBR (Brazil). The web content of harmful components like phosphorus and sulfur should be strictly regulated.
1.2 Mechanical Qualities: Focus on tensile toughness, return toughness, firmness, and elongation. For ductile iron, describe requirements such as ISO 1083, EN 1563, or GOST 28394. Procurement needs to require providers to supply material certificates and mechanical test reports that follow the target audience’s needs.

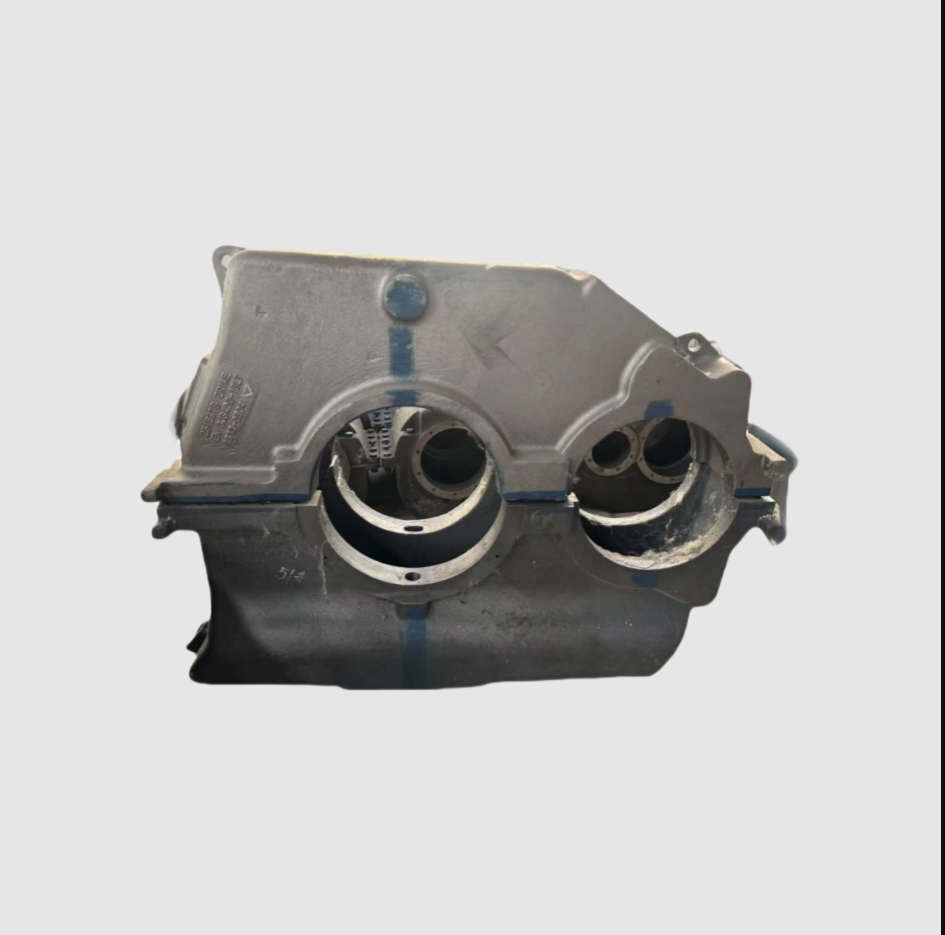

(Railway Cast Iron Gearbox)
2. Dimensional Accuracy & Tolerance Control: Making Certain a “Perfect Fit”
Railway jobs worldwide have strict demands for dimensional interchangeability; any type of deviation can impact system integration. Precision is a mark of superior railway casting manufacturers.
2.1 Critical Dimensions: All user interface measurements and mounting hole settings for all train casting elements must be 100% evaluated.
2.2 Resistance Requirements: Need to abide by internationally identified requirements like ISO 2768, or specific resistance needs explicitly set with the client. For the Russian and CIS markets, unique attention has to be paid to adhering to pertinent tolerance specs in GOST 30893.
3. Limits on Casting Issues: Removing Interior Hidden Dangers
The acceptance criteria for casting defects should be plainly specified in contracts and based upon worldwide or regionally recognized requirements. Leading railway spreading parts supplier procedures employ rigorous non-destructive screening.
3.1 Surface area Flaws: Standards like ISO 8062 can be referenced for assessing casting surface quality. Fractures, chilly shuts, and various other issues impacting service are not permitted.
3.2 Interior Issues: For vital load-bearing railway spreading elements, non-destructive testing (e.g., ultrasonic, radiographic) need to be performed according to criteria like ISO 4990, EN 12680, or the GOST R 55724 collection, with clear acceptance degrees for flaws.
4. Metallographic Structure & Internal High Quality
The tiny structure of the material is the key basis for evaluating whether its inner high quality fulfills the requirement. This is a critical check for any professional railway spreading parts manufacturer.
4.1 Ductile Iron: The assessment of nodularization price should follow standards such as ISO 945-1 or GOST 3443 to guarantee its mechanical properties fulfill the needs for usage under complex working conditions.
4.2 Graphite Morphology & Matrix Framework: The metallographic inspection report is a vital file for validating the stability of the production procedure and should abide by the appropriate worldwide or regional requirements.

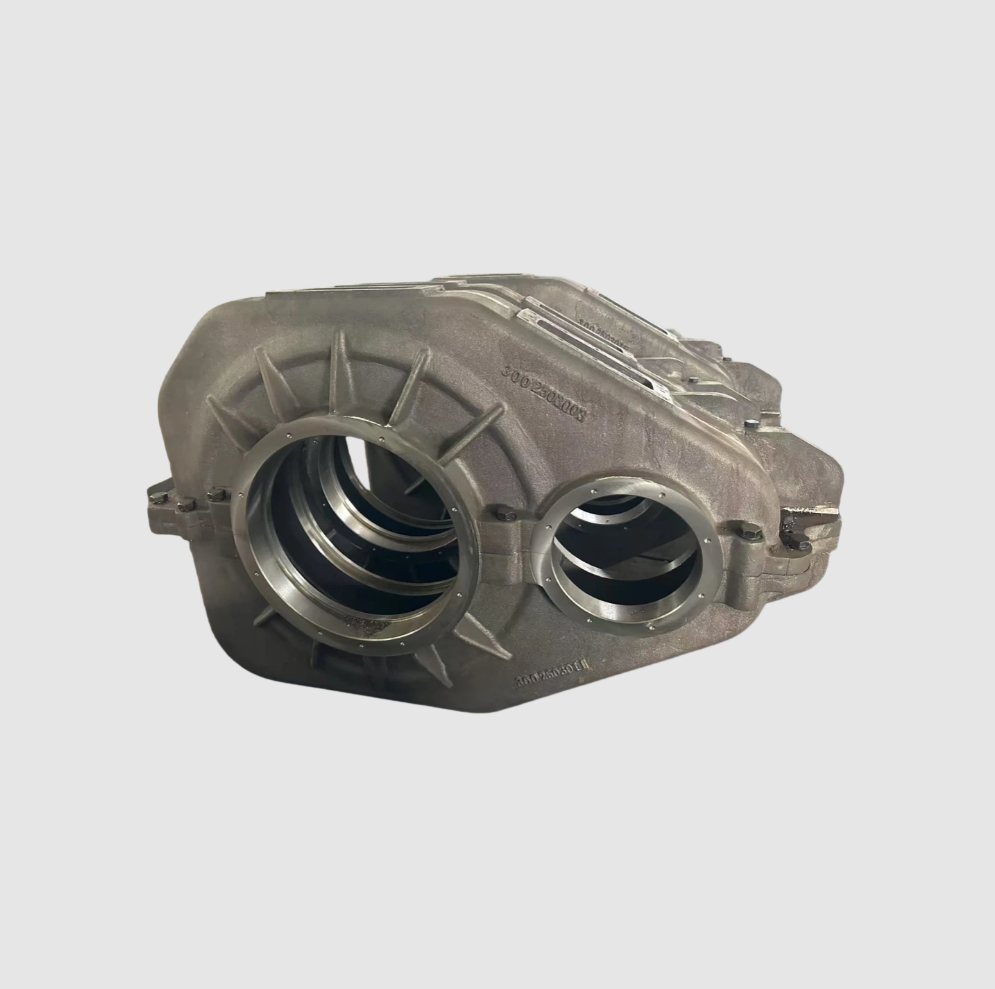

(Railway Cast Iron Gearbox)
5. Anti-Corrosion Therapy & Surface High Quality: Withstanding Harsh Environments
Given South Africa’s coastal high salinity, South America’s tropical rainforest moisture, and Russia’s severe cold and de-icing salts, anti-corrosion treatment for train casting parts is critical.
5.1 Treatment Processes: Define the kind of anti-corrosion process, such as hot-dip galvanizing (ISO 1461), epoxy covering, etc, and specify crucial indications like layer density, bond ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Standards: Must take notice of details requirements of the target audience, such as Russia’s GOST 9.307 anti-corrosion system qualification, or South Africa’s SANS (South African National Standard) criteria. A global railway casting suppliers will certainly know with these diverse demands.
Luoyang Fonyo Heavy Industries Co., Ltd. is a leading producer of hefty commercial castings and parts, focusing on offering high-quality steel castings, consisting of carbon steel, high manganese steel, alloy steel, and heat-resistant steel castings. With a comprehensive solution model incorporating design, spreading, machining, and solution, Fonyo makes certain that each item meets rigorous high quality and efficiency criteria to satisfy the demanding requirements of various hefty sectors.
If you are looking for a trusted supplier of spindle box, Luoyang Fonyo Heavy Industries Co., Ltd. is your ideal choice. Visit Fonyo’s official website (www.railwaypart.com) for more product information and technical support!
