1. Chemical and Structural Principles of Boron Carbide
1.1 Crystallography and Stoichiometric Variability

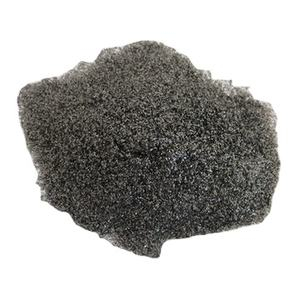

(Boron Carbide Podwer)
Boron carbide (B FOUR C) is a non-metallic ceramic substance renowned for its remarkable hardness, thermal security, and neutron absorption ability, positioning it among the hardest well-known materials– surpassed just by cubic boron nitride and ruby.
Its crystal framework is based on a rhombohedral latticework made up of 12-atom icosahedra (primarily B ₁₂ or B ₁₁ C) adjoined by direct C-B-C or C-B-B chains, forming a three-dimensional covalent network that conveys amazing mechanical strength.
Unlike several ceramics with fixed stoichiometry, boron carbide exhibits a variety of compositional versatility, generally varying from B FOUR C to B ₁₀. FOUR C, as a result of the alternative of carbon atoms within the icosahedra and architectural chains.
This variability affects key residential properties such as firmness, electric conductivity, and thermal neutron capture cross-section, allowing for residential or commercial property adjusting based on synthesis conditions and desired application.
The existence of intrinsic issues and problem in the atomic plan also contributes to its one-of-a-kind mechanical habits, including a sensation known as “amorphization under stress” at high pressures, which can limit efficiency in extreme impact situations.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is mostly created with high-temperature carbothermal reduction of boron oxide (B TWO O FOUR) with carbon sources such as petroleum coke or graphite in electrical arc furnaces at temperatures between 1800 ° C and 2300 ° C.
The reaction continues as: B TWO O ₃ + 7C → 2B FOUR C + 6CO, producing rugged crystalline powder that requires succeeding milling and filtration to attain penalty, submicron or nanoscale bits appropriate for sophisticated applications.
Alternate techniques such as laser-assisted chemical vapor deposition (CVD), sol-gel handling, and mechanochemical synthesis offer paths to greater pureness and controlled bit dimension circulation, though they are commonly limited by scalability and cost.
Powder attributes– including bit dimension, form, jumble state, and surface chemistry– are essential criteria that affect sinterability, packing thickness, and last component efficiency.
For example, nanoscale boron carbide powders exhibit boosted sintering kinetics because of high surface area energy, allowing densification at lower temperature levels, yet are vulnerable to oxidation and call for safety ambiences throughout handling and handling.
Surface functionalization and layer with carbon or silicon-based layers are progressively used to boost dispersibility and inhibit grain development throughout consolidation.

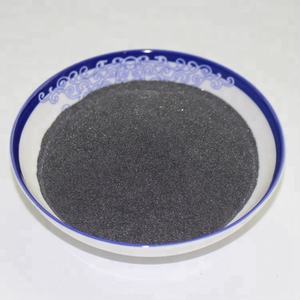

( Boron Carbide Podwer)
2. Mechanical Qualities and Ballistic Performance Mechanisms
2.1 Solidity, Fracture Toughness, and Wear Resistance
Boron carbide powder is the forerunner to among one of the most efficient lightweight shield materials offered, owing to its Vickers hardness of about 30– 35 Grade point average, which enables it to erode and blunt incoming projectiles such as bullets and shrapnel.
When sintered right into thick ceramic floor tiles or integrated right into composite shield systems, boron carbide outperforms steel and alumina on a weight-for-weight basis, making it ideal for personnel security, lorry shield, and aerospace protecting.
Nevertheless, regardless of its high hardness, boron carbide has fairly reduced crack sturdiness (2.5– 3.5 MPa · m 1ST / TWO), providing it at risk to cracking under localized impact or repeated loading.
This brittleness is exacerbated at high pressure rates, where dynamic failure devices such as shear banding and stress-induced amorphization can bring about catastrophic loss of structural honesty.
Ongoing study concentrates on microstructural design– such as presenting secondary phases (e.g., silicon carbide or carbon nanotubes), developing functionally rated composites, or designing ordered designs– to alleviate these constraints.
2.2 Ballistic Energy Dissipation and Multi-Hit Capacity
In personal and automotive shield systems, boron carbide floor tiles are normally backed by fiber-reinforced polymer composites (e.g., Kevlar or UHMWPE) that soak up residual kinetic power and have fragmentation.
Upon effect, the ceramic layer cracks in a regulated manner, dissipating power via devices including bit fragmentation, intergranular cracking, and phase change.
The great grain framework originated from high-purity, nanoscale boron carbide powder boosts these energy absorption processes by increasing the thickness of grain boundaries that hinder crack propagation.
Current advancements in powder processing have caused the advancement of boron carbide-based ceramic-metal compounds (cermets) and nano-laminated frameworks that improve multi-hit resistance– a crucial demand for armed forces and police applications.
These engineered products preserve safety efficiency even after preliminary effect, attending to a crucial constraint of monolithic ceramic armor.
3. Neutron Absorption and Nuclear Design Applications
3.1 Communication with Thermal and Rapid Neutrons
Past mechanical applications, boron carbide powder plays an essential duty in nuclear modern technology due to the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).
When incorporated into control poles, protecting materials, or neutron detectors, boron carbide effectively manages fission reactions by recording neutrons and going through the ¹⁰ B( n, α) ⁷ Li nuclear reaction, generating alpha fragments and lithium ions that are easily included.
This residential or commercial property makes it vital in pressurized water reactors (PWRs), boiling water reactors (BWRs), and research activators, where specific neutron flux control is important for secure procedure.
The powder is frequently fabricated right into pellets, finishes, or distributed within metal or ceramic matrices to form composite absorbers with customized thermal and mechanical residential or commercial properties.
3.2 Stability Under Irradiation and Long-Term Performance
An essential advantage of boron carbide in nuclear environments is its high thermal security and radiation resistance up to temperatures surpassing 1000 ° C.
Nevertheless, prolonged neutron irradiation can result in helium gas buildup from the (n, α) response, causing swelling, microcracking, and destruction of mechanical integrity– a sensation known as “helium embrittlement.”
To minimize this, scientists are establishing doped boron carbide formulas (e.g., with silicon or titanium) and composite designs that suit gas launch and preserve dimensional security over prolonged service life.
Furthermore, isotopic enrichment of ¹⁰ B boosts neutron capture performance while lowering the overall product volume needed, enhancing reactor style versatility.
4. Arising and Advanced Technological Integrations
4.1 Additive Manufacturing and Functionally Rated Components
Recent progress in ceramic additive manufacturing has enabled the 3D printing of intricate boron carbide components utilizing methods such as binder jetting and stereolithography.
In these processes, great boron carbide powder is uniquely bound layer by layer, followed by debinding and high-temperature sintering to achieve near-full thickness.
This capability permits the fabrication of personalized neutron protecting geometries, impact-resistant lattice frameworks, and multi-material systems where boron carbide is integrated with steels or polymers in functionally graded layouts.
Such styles enhance efficiency by incorporating solidity, strength, and weight efficiency in a solitary part, opening brand-new frontiers in protection, aerospace, and nuclear design.
4.2 High-Temperature and Wear-Resistant Industrial Applications
Beyond protection and nuclear sectors, boron carbide powder is used in rough waterjet cutting nozzles, sandblasting liners, and wear-resistant layers due to its severe firmness and chemical inertness.
It exceeds tungsten carbide and alumina in erosive atmospheres, specifically when subjected to silica sand or other hard particulates.
In metallurgy, it acts as a wear-resistant lining for receptacles, chutes, and pumps dealing with rough slurries.
Its low thickness (~ 2.52 g/cm TWO) further improves its charm in mobile and weight-sensitive industrial equipment.
As powder high quality enhances and handling modern technologies breakthrough, boron carbide is positioned to expand into next-generation applications including thermoelectric materials, semiconductor neutron detectors, and space-based radiation shielding.
In conclusion, boron carbide powder represents a cornerstone material in extreme-environment engineering, integrating ultra-high firmness, neutron absorption, and thermal resilience in a solitary, flexible ceramic system.
Its duty in protecting lives, enabling nuclear energy, and progressing industrial effectiveness underscores its tactical relevance in modern innovation.
With proceeded advancement in powder synthesis, microstructural design, and manufacturing combination, boron carbide will stay at the leading edge of innovative products growth for years to find.
