1. Fundamental Framework and Product Make-up
1.1 The Nanoscale Design of Aerogels

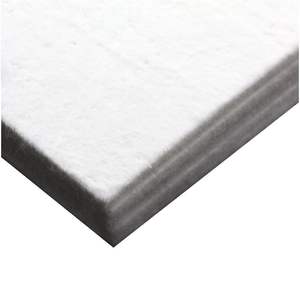

(Aerogel Blanket)
Aerogel coverings are advanced thermal insulation materials built upon a distinct nanostructured framework, where a solid silica or polymer network spans an ultra-high porosity quantity– typically surpassing 90% air.
This structure stems from the sol-gel process, in which a liquid forerunner (often tetramethyl orthosilicate or TMOS) undertakes hydrolysis and polycondensation to develop a wet gel, adhered to by supercritical or ambient stress drying to remove the liquid without collapsing the delicate porous network.
The resulting aerogel contains interconnected nanoparticles (3– 5 nm in size) forming pores on the scale of 10– 50 nm, tiny sufficient to subdue air particle motion and therefore reduce conductive and convective heat transfer.
This phenomenon, referred to as Knudsen diffusion, drastically lowers the efficient thermal conductivity of the material, usually to worths between 0.012 and 0.018 W/(m · K) at room temperature– among the lowest of any solid insulator.
Despite their reduced thickness (as low as 0.003 g/cm ³), pure aerogels are naturally weak, requiring reinforcement for useful usage in flexible covering form.
1.2 Support and Composite Style
To overcome fragility, aerogel powders or pillars are mechanically incorporated into fibrous substrates such as glass fiber, polyester, or aramid felts, creating a composite “blanket” that preserves outstanding insulation while obtaining mechanical toughness.
The enhancing matrix gives tensile strength, versatility, and taking care of durability, making it possible for the material to be reduced, bent, and installed in complex geometries without significant performance loss.
Fiber web content usually varies from 5% to 20% by weight, thoroughly stabilized to decrease thermal bridging– where fibers conduct warm throughout the blanket– while making sure structural integrity.
Some progressed designs incorporate hydrophobic surface area treatments (e.g., trimethylsilyl teams) to avoid dampness absorption, which can break down insulation efficiency and promote microbial growth.
These modifications enable aerogel blankets to preserve secure thermal homes even in humid environments, expanding their applicability beyond controlled lab problems.
2. Manufacturing Processes and Scalability

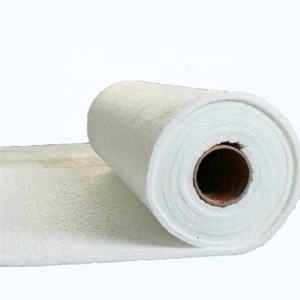

( Aerogel Blanket)
2.1 From Sol-Gel to Roll-to-Roll Production
The production of aerogel coverings starts with the development of a wet gel within a coarse floor covering, either by fertilizing the substrate with a fluid precursor or by co-forming the gel and fiber network at the same time.
After gelation, the solvent need to be gotten rid of under conditions that protect against capillary stress from falling down the nanopores; traditionally, this required supercritical carbon monoxide two drying, an expensive and energy-intensive process.
Current breakthroughs have enabled ambient stress drying out through surface area adjustment and solvent exchange, substantially decreasing manufacturing prices and enabling constant roll-to-roll manufacturing.
In this scalable process, long rolls of fiber floor covering are constantly covered with precursor solution, gelled, dried out, and surface-treated, enabling high-volume output appropriate for industrial applications.
This shift has been critical in transitioning aerogel coverings from specific niche laboratory products to readily practical items used in construction, energy, and transport industries.
2.2 Quality Assurance and Efficiency Consistency
Making certain consistent pore structure, regular thickness, and trusted thermal efficiency throughout huge manufacturing sets is crucial for real-world release.
Producers utilize extensive quality control measures, consisting of laser scanning for density variant, infrared thermography for thermal mapping, and gravimetric analysis for moisture resistance.
Batch-to-batch reproducibility is important, particularly in aerospace and oil & gas markets, where failure because of insulation malfunction can have severe repercussions.
Additionally, standard screening according to ASTM C177 (heat circulation meter) or ISO 9288 ensures precise coverage of thermal conductivity and makes it possible for reasonable comparison with conventional insulators like mineral woollen or foam.
3. Thermal and Multifunctional Characteristic
3.1 Superior Insulation Across Temperature Ranges
Aerogel coverings show outstanding thermal efficiency not only at ambient temperatures but additionally throughout extreme varieties– from cryogenic conditions listed below -100 ° C to heats surpassing 600 ° C, depending upon the base material and fiber type.
At cryogenic temperatures, traditional foams might break or lose performance, whereas aerogel coverings continue to be flexible and maintain low thermal conductivity, making them optimal for LNG pipes and storage tanks.
In high-temperature applications, such as commercial heaters or exhaust systems, they provide efficient insulation with reduced density compared to bulkier options, saving room and weight.
Their low emissivity and capability to show radiant heat even more enhance performance in radiant obstacle arrangements.
This broad functional envelope makes aerogel coverings uniquely functional among thermal monitoring solutions.
3.2 Acoustic and Fireproof Features
Past thermal insulation, aerogel coverings show noteworthy sound-dampening homes because of their open, tortuous pore structure that dissipates acoustic energy via viscous losses.
They are significantly made use of in vehicle and aerospace cabins to decrease environmental pollution without including substantial mass.
In addition, most silica-based aerogel coverings are non-combustible, attaining Course A fire ratings, and do not release hazardous fumes when revealed to flame– crucial for developing security and public infrastructure.
Their smoke thickness is remarkably low, boosting exposure throughout emergency situation emptyings.
4. Applications in Sector and Arising Technologies
4.1 Power Performance in Structure and Industrial Systems
Aerogel coverings are transforming energy performance in architecture and commercial design by making it possible for thinner, higher-performance insulation layers.
In structures, they are used in retrofitting historic frameworks where wall surface density can not be enhanced, or in high-performance façades and home windows to decrease thermal bridging.
In oil and gas, they shield pipes carrying warm fluids or cryogenic LNG, minimizing energy loss and avoiding condensation or ice formation.
Their lightweight nature additionally reduces architectural tons, specifically advantageous in overseas systems and mobile systems.
4.2 Aerospace, Automotive, and Customer Applications
In aerospace, aerogel coverings shield spacecraft from severe temperature level fluctuations during re-entry and guard delicate instruments from thermal biking precede.
NASA has utilized them in Mars wanderers and astronaut suits for easy thermal regulation.
Automotive manufacturers integrate aerogel insulation into electric lorry battery loads to stop thermal runaway and boost safety and effectiveness.
Customer products, consisting of exterior clothing, footwear, and outdoor camping gear, currently include aerogel cellular linings for premium heat without bulk.
As production costs decrease and sustainability improves, aerogel blankets are positioned to end up being mainstream services in worldwide efforts to reduce power consumption and carbon exhausts.
In conclusion, aerogel coverings stand for a convergence of nanotechnology and functional engineering, delivering unmatched thermal performance in a versatile, sturdy style.
Their capacity to save energy, area, and weight while maintaining security and ecological compatibility settings them as vital enablers of lasting technology throughout varied markets.
