1. Product Foundations and Synergistic Style
1.1 Inherent Qualities of Constituent Phases

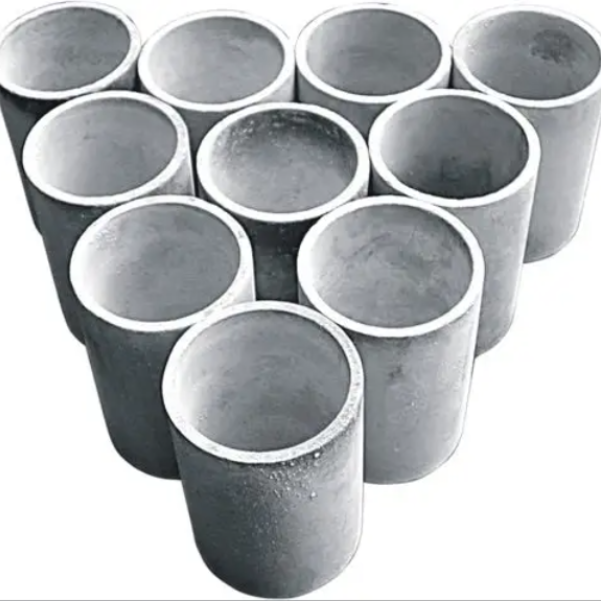

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si four N ₄) and silicon carbide (SiC) are both covalently bonded, non-oxide porcelains renowned for their remarkable efficiency in high-temperature, corrosive, and mechanically requiring settings.
Silicon nitride displays outstanding crack strength, thermal shock resistance, and creep stability because of its one-of-a-kind microstructure made up of lengthened β-Si six N four grains that allow crack deflection and bridging mechanisms.
It maintains strength up to 1400 ° C and has a reasonably low thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), decreasing thermal anxieties throughout fast temperature level adjustments.
In contrast, silicon carbide provides premium firmness, thermal conductivity (as much as 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it ideal for abrasive and radiative heat dissipation applications.
Its vast bandgap (~ 3.3 eV for 4H-SiC) additionally gives exceptional electrical insulation and radiation tolerance, beneficial in nuclear and semiconductor contexts.
When integrated right into a composite, these materials display complementary behaviors: Si four N four enhances toughness and damages resistance, while SiC enhances thermal management and use resistance.
The resulting crossbreed ceramic achieves a balance unattainable by either phase alone, creating a high-performance structural product tailored for extreme service problems.
1.2 Composite Design and Microstructural Design
The layout of Si four N FOUR– SiC compounds entails exact control over phase distribution, grain morphology, and interfacial bonding to take full advantage of collaborating impacts.
Generally, SiC is presented as great particle reinforcement (ranging from submicron to 1 µm) within a Si five N four matrix, although functionally rated or split architectures are additionally discovered for specialized applications.
During sintering– normally by means of gas-pressure sintering (GENERAL PRACTITIONER) or hot pushing– SiC fragments affect the nucleation and development kinetics of β-Si five N ₄ grains, often advertising finer and more uniformly oriented microstructures.
This refinement boosts mechanical homogeneity and decreases imperfection dimension, adding to better strength and dependability.
Interfacial compatibility between both phases is important; due to the fact that both are covalent ceramics with comparable crystallographic balance and thermal expansion behavior, they form systematic or semi-coherent limits that resist debonding under lots.
Ingredients such as yttria (Y TWO O SIX) and alumina (Al ₂ O ₃) are used as sintering help to advertise liquid-phase densification of Si ₃ N ₄ without endangering the stability of SiC.
Nonetheless, extreme secondary stages can degrade high-temperature performance, so make-up and processing must be enhanced to minimize glazed grain limit movies.
2. Processing Methods and Densification Obstacles

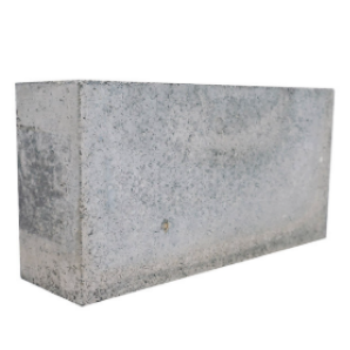

( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Methods
Top Quality Si Five N ₄– SiC compounds start with homogeneous blending of ultrafine, high-purity powders using damp round milling, attrition milling, or ultrasonic dispersion in organic or liquid media.
Accomplishing uniform dispersion is important to stop cluster of SiC, which can function as anxiety concentrators and reduce crack sturdiness.
Binders and dispersants are added to support suspensions for shaping strategies such as slip casting, tape spreading, or shot molding, relying on the preferred part geometry.
Environment-friendly bodies are then meticulously dried and debound to remove organics before sintering, a process needing regulated home heating prices to prevent fracturing or deforming.
For near-net-shape manufacturing, additive methods like binder jetting or stereolithography are arising, allowing complicated geometries formerly unattainable with traditional ceramic handling.
These approaches need customized feedstocks with enhanced rheology and green stamina, usually entailing polymer-derived ceramics or photosensitive resins filled with composite powders.
2.2 Sintering Devices and Stage Stability
Densification of Si Six N FOUR– SiC compounds is testing because of the solid covalent bonding and minimal self-diffusion of nitrogen and carbon at functional temperature levels.
Liquid-phase sintering utilizing rare-earth or alkaline planet oxides (e.g., Y ₂ O THREE, MgO) decreases the eutectic temperature and boosts mass transportation via a short-term silicate thaw.
Under gas pressure (typically 1– 10 MPa N ₂), this thaw facilitates rearrangement, solution-precipitation, and final densification while subduing decomposition of Si three N ₄.
The presence of SiC influences viscosity and wettability of the fluid phase, possibly changing grain growth anisotropy and last appearance.
Post-sintering heat treatments may be put on take shape recurring amorphous stages at grain borders, boosting high-temperature mechanical buildings and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are routinely used to confirm phase purity, lack of undesirable secondary stages (e.g., Si ₂ N TWO O), and consistent microstructure.
3. Mechanical and Thermal Performance Under Tons
3.1 Toughness, Toughness, and Tiredness Resistance
Si Two N ₄– SiC composites show superior mechanical performance compared to monolithic porcelains, with flexural toughness exceeding 800 MPa and fracture durability worths getting to 7– 9 MPa · m ONE/ TWO.
The enhancing effect of SiC fragments hinders misplacement movement and crack proliferation, while the lengthened Si four N ₄ grains continue to supply toughening through pull-out and linking mechanisms.
This dual-toughening method leads to a product very resistant to influence, thermal cycling, and mechanical exhaustion– essential for revolving parts and architectural components in aerospace and energy systems.
Creep resistance remains superb as much as 1300 ° C, attributed to the stability of the covalent network and decreased grain border gliding when amorphous stages are decreased.
Firmness values usually vary from 16 to 19 Grade point average, providing excellent wear and disintegration resistance in unpleasant settings such as sand-laden circulations or moving contacts.
3.2 Thermal Monitoring and Ecological Resilience
The enhancement of SiC dramatically elevates the thermal conductivity of the composite, commonly doubling that of pure Si six N ₄ (which ranges from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending on SiC web content and microstructure.
This boosted warmth transfer capacity enables extra efficient thermal administration in components exposed to extreme localized heating, such as burning linings or plasma-facing components.
The composite maintains dimensional security under steep thermal gradients, resisting spallation and splitting because of matched thermal growth and high thermal shock criterion (R-value).
Oxidation resistance is one more essential advantage; SiC develops a protective silica (SiO TWO) layer upon direct exposure to oxygen at raised temperature levels, which better densifies and seals surface area defects.
This passive layer protects both SiC and Si ₃ N FOUR (which also oxidizes to SiO ₂ and N ₂), ensuring long-term sturdiness in air, heavy steam, or burning ambiences.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Power, and Industrial Systems
Si ₃ N FOUR– SiC composites are significantly deployed in next-generation gas wind turbines, where they allow greater operating temperatures, enhanced fuel performance, and reduced cooling needs.
Elements such as generator blades, combustor liners, and nozzle overview vanes gain from the product’s capability to hold up against thermal biking and mechanical loading without considerable deterioration.
In nuclear reactors, especially high-temperature gas-cooled reactors (HTGRs), these compounds work as fuel cladding or architectural assistances as a result of their neutron irradiation tolerance and fission item retention capability.
In industrial settings, they are utilized in liquified metal handling, kiln furniture, and wear-resistant nozzles and bearings, where conventional steels would stop working prematurely.
Their lightweight nature (thickness ~ 3.2 g/cm FOUR) additionally makes them appealing for aerospace propulsion and hypersonic lorry parts based on aerothermal home heating.
4.2 Advanced Manufacturing and Multifunctional Integration
Emerging research concentrates on establishing functionally rated Si ₃ N ₄– SiC frameworks, where composition differs spatially to enhance thermal, mechanical, or electromagnetic residential properties across a single component.
Hybrid systems integrating CMC (ceramic matrix composite) designs with fiber support (e.g., SiC_f/ SiC– Si Three N FOUR) push the boundaries of damage resistance and strain-to-failure.
Additive manufacturing of these composites allows topology-optimized warm exchangers, microreactors, and regenerative air conditioning channels with interior lattice frameworks unachievable using machining.
In addition, their integral dielectric homes and thermal security make them candidates for radar-transparent radomes and antenna windows in high-speed platforms.
As demands grow for materials that perform accurately under severe thermomechanical tons, Si six N FOUR– SiC compounds stand for an essential improvement in ceramic engineering, combining effectiveness with performance in a single, sustainable platform.
In conclusion, silicon nitride– silicon carbide composite ceramics exemplify the power of materials-by-design, leveraging the toughness of two sophisticated porcelains to create a crossbreed system capable of prospering in the most severe operational atmospheres.
Their proceeded growth will play a main role in advancing clean energy, aerospace, and industrial modern technologies in the 21st century.
