1. Molecular Basis and Useful Mechanism
1.1 Healthy Protein Chemistry and Surfactant Habits

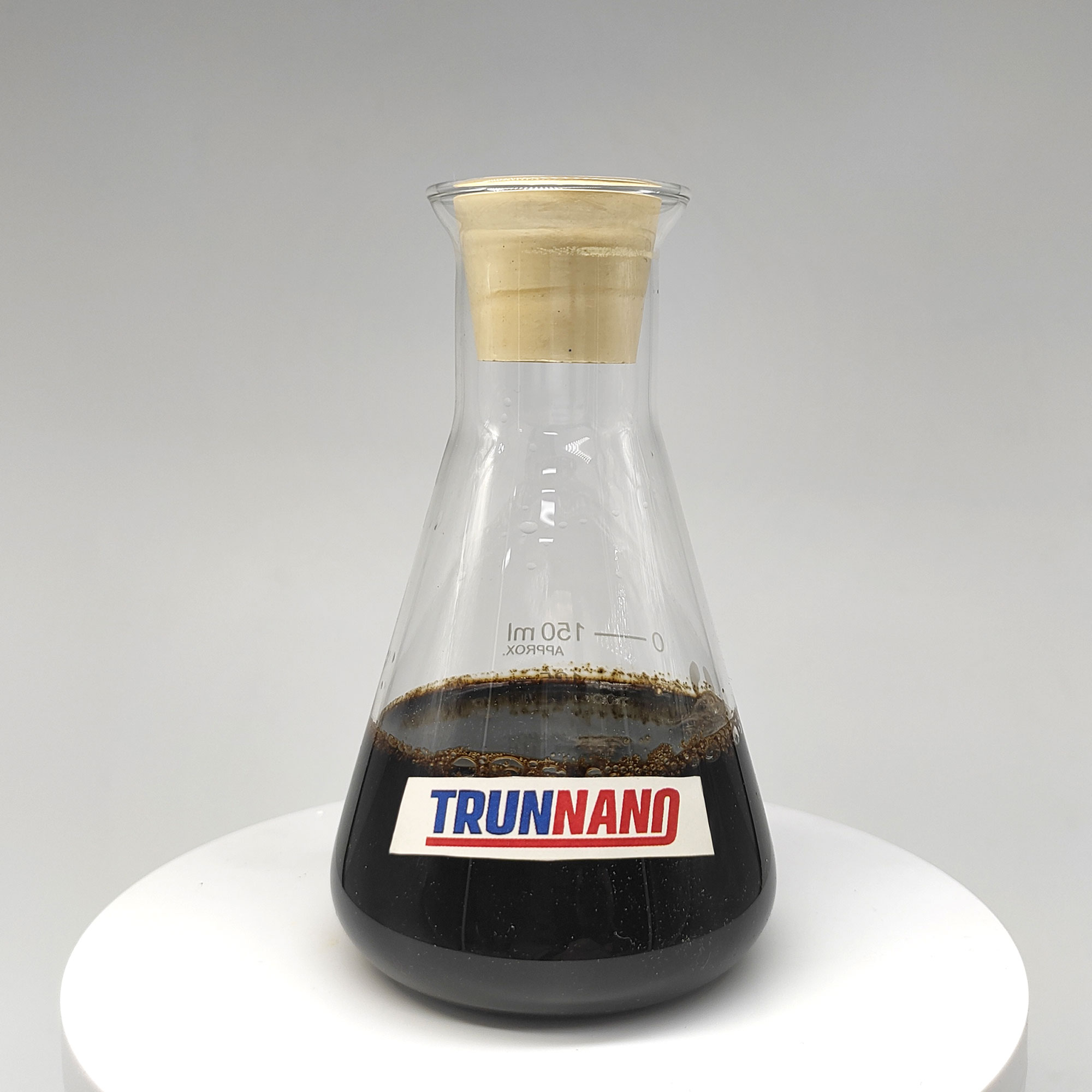

(TR–E Animal Protein Frothing Agent)
TR– E Animal Protein Frothing Representative is a specialized surfactant stemmed from hydrolyzed pet proteins, largely collagen and keratin, sourced from bovine or porcine byproducts refined under regulated chemical or thermal conditions.
The agent functions via the amphiphilic nature of its peptide chains, which include both hydrophobic amino acid deposits (e.g., leucine, valine, phenylalanine) and hydrophilic moieties (e.g., lysine, aspartic acid, glutamic acid).
When presented into a liquid cementitious system and subjected to mechanical agitation, these protein molecules move to the air-water interface, decreasing surface tension and supporting entrained air bubbles.
The hydrophobic sectors orient toward the air stage while the hydrophilic areas continue to be in the liquid matrix, creating a viscoelastic film that withstands coalescence and water drainage, thereby prolonging foam security.
Unlike artificial surfactants, TR– E gain from a complicated, polydisperse molecular framework that enhances interfacial elasticity and provides remarkable foam durability under variable pH and ionic strength problems typical of concrete slurries.
This natural protein architecture enables multi-point adsorption at user interfaces, developing a durable network that supports penalty, uniform bubble dispersion essential for lightweight concrete applications.
1.2 Foam Generation and Microstructural Control
The effectiveness of TR– E lies in its capability to produce a high volume of stable, micro-sized air spaces (commonly 10– 200 µm in diameter) with slim dimension circulation when integrated into concrete, gypsum, or geopolymer systems.
Throughout mixing, the frothing agent is presented with water, and high-shear blending or air-entraining equipment introduces air, which is after that supported by the adsorbed protein layer.
The resulting foam framework dramatically lowers the density of the final composite, making it possible for the manufacturing of lightweight materials with densities ranging from 300 to 1200 kg/m FIVE, relying on foam volume and matrix make-up.

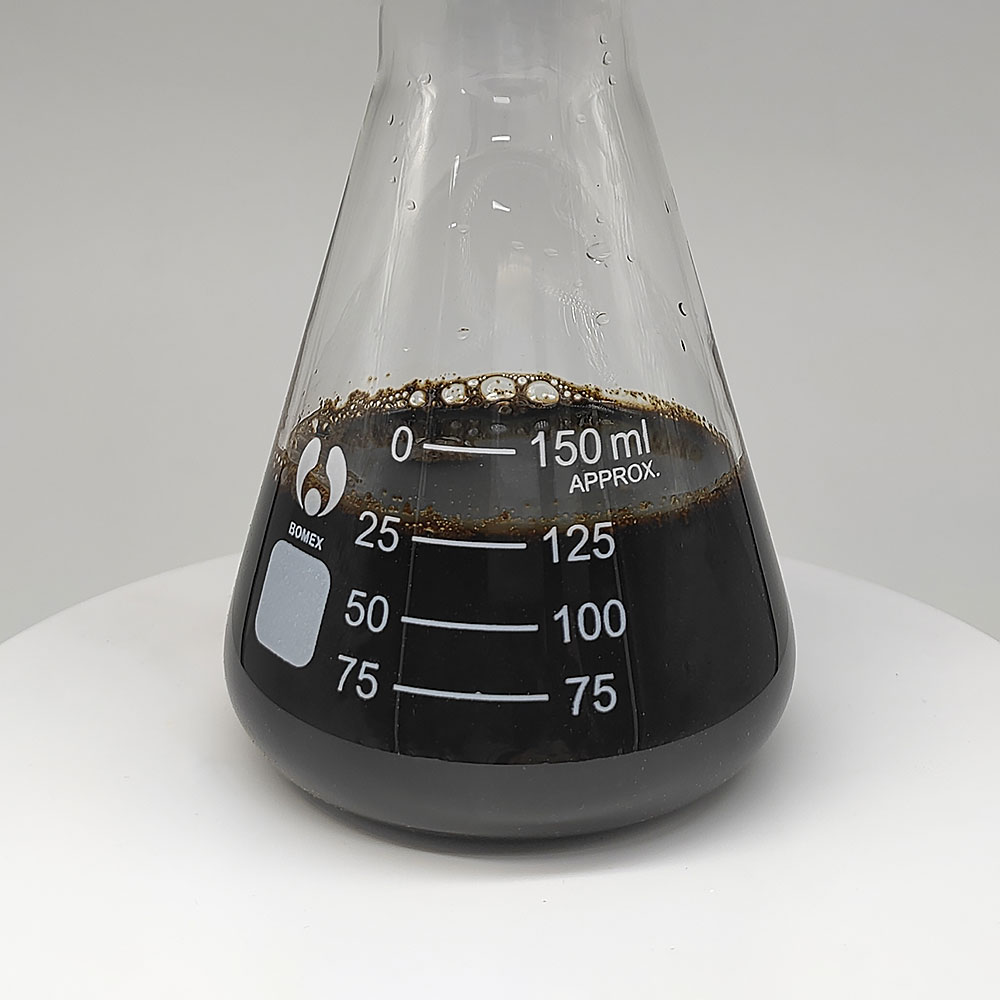

( TR–E Animal Protein Frothing Agent)
Crucially, the uniformity and security of the bubbles conveyed by TR– E decrease partition and blood loss in fresh mixes, boosting workability and homogeneity.
The closed-cell nature of the maintained foam additionally improves thermal insulation and freeze-thaw resistance in hard items, as separated air voids interfere with warm transfer and suit ice expansion without fracturing.
Additionally, the protein-based movie displays thixotropic habits, maintaining foam integrity during pumping, casting, and curing without excessive collapse or coarsening.
2. Production Refine and Quality Assurance
2.1 Raw Material Sourcing and Hydrolysis
The production of TR– E begins with the choice of high-purity animal byproducts, such as conceal trimmings, bones, or plumes, which undergo rigorous cleansing and defatting to get rid of natural impurities and microbial load.
These resources are then subjected to controlled hydrolysis– either acid, alkaline, or chemical– to damage down the complex tertiary and quaternary structures of collagen or keratin into soluble polypeptides while preserving practical amino acid sequences.
Chemical hydrolysis is preferred for its uniqueness and moderate problems, minimizing denaturation and maintaining the amphiphilic balance important for lathering efficiency.
( Foam concrete)
The hydrolysate is filtered to remove insoluble residues, concentrated using dissipation, and standardized to a constant solids content (commonly 20– 40%).
Trace metal content, specifically alkali and heavy steels, is kept an eye on to ensure compatibility with concrete hydration and to avoid premature setting or efflorescence.
2.2 Formula and Efficiency Testing
Last TR– E formulas may consist of stabilizers (e.g., glycerol), pH buffers (e.g., salt bicarbonate), and biocides to stop microbial deterioration throughout storage.
The item is generally supplied as a thick liquid concentrate, requiring dilution before usage in foam generation systems.
Quality assurance includes standardized tests such as foam expansion proportion (FER), defined as the volume of foam produced per unit volume of concentrate, and foam security index (FSI), determined by the price of fluid water drainage or bubble collapse with time.
Performance is additionally reviewed in mortar or concrete trials, examining criteria such as fresh density, air content, flowability, and compressive stamina growth.
Set consistency is guaranteed through spectroscopic evaluation (e.g., FTIR, UV-Vis) and electrophoretic profiling to verify molecular stability and reproducibility of frothing behavior.
3. Applications in Building and Product Science
3.1 Lightweight Concrete and Precast Elements
TR– E is widely employed in the manufacture of autoclaved oxygenated concrete (AAC), foam concrete, and light-weight precast panels, where its reliable frothing activity makes it possible for precise control over thickness and thermal residential or commercial properties.
In AAC production, TR– E-generated foam is mixed with quartz sand, cement, lime, and aluminum powder, after that healed under high-pressure steam, causing a cellular structure with exceptional insulation and fire resistance.
Foam concrete for flooring screeds, roof insulation, and space filling up take advantage of the ease of pumping and positioning made it possible for by TR– E’s secure foam, decreasing architectural lots and product intake.
The representative’s compatibility with various binders, including Rose city concrete, combined concretes, and alkali-activated systems, expands its applicability across lasting building and construction innovations.
Its capability to maintain foam security throughout expanded placement times is especially advantageous in large-scale or remote building projects.
3.2 Specialized and Arising Makes Use Of
Beyond traditional building, TR– E locates use in geotechnical applications such as light-weight backfill for bridge joints and tunnel cellular linings, where lowered side earth pressure stops architectural overloading.
In fireproofing sprays and intumescent coverings, the protein-stabilized foam adds to char formation and thermal insulation during fire direct exposure, boosting passive fire protection.
Research is discovering its function in 3D-printed concrete, where regulated rheology and bubble stability are crucial for layer bond and shape retention.
In addition, TR– E is being adapted for usage in dirt stabilization and mine backfill, where lightweight, self-hardening slurries improve safety and security and lower ecological impact.
Its biodegradability and low poisoning compared to synthetic foaming representatives make it a desirable selection in eco-conscious building and construction techniques.
4. Environmental and Efficiency Advantages
4.1 Sustainability and Life-Cycle Influence
TR– E stands for a valorization path for animal handling waste, changing low-value by-products into high-performance construction ingredients, thereby sustaining round economy principles.
The biodegradability of protein-based surfactants lowers lasting ecological perseverance, and their reduced aquatic toxicity reduces environmental risks during production and disposal.
When included right into structure materials, TR– E adds to energy effectiveness by allowing lightweight, well-insulated structures that decrease heating and cooling down demands over the structure’s life cycle.
Contrasted to petrochemical-derived surfactants, TR– E has a lower carbon impact, especially when produced utilizing energy-efficient hydrolysis and waste-heat recovery systems.
4.2 Efficiency in Harsh Issues
Among the crucial benefits of TR– E is its security in high-alkalinity settings (pH > 12), normal of concrete pore remedies, where several protein-based systems would denature or lose capability.
The hydrolyzed peptides in TR– E are selected or customized to resist alkaline destruction, making certain regular lathering efficiency throughout the setting and treating phases.
It also does dependably throughout a variety of temperatures (5– 40 ° C), making it ideal for use in varied climatic problems without requiring heated storage space or additives.
The resulting foam concrete displays enhanced sturdiness, with minimized water absorption and boosted resistance to freeze-thaw cycling as a result of enhanced air gap structure.
To conclude, TR– E Animal Healthy protein Frothing Agent exemplifies the integration of bio-based chemistry with advanced building materials, offering a lasting, high-performance option for lightweight and energy-efficient structure systems.
Its proceeded advancement supports the change towards greener infrastructure with decreased environmental impact and boosted useful efficiency.
